CVSE1-RA Series - Simple & Easy Setup Color Area Sensor

  • Thương hiệu: OPTEX-FA
  • Mã sản phẩm: OPTEX-VISION
  • Tình trạng: Còn trong kho
Liên hệ
Giá sau Thuế: Liên hệ

Simple & Easy Setup Color Area Sensor All in one color vision sensor Color resolution : 15,000 colors Stable color detection by calculating hue of each pixel


Simple & Easy Setup Color Area Sensor

  • All in one color vision sensor
  • Color resolution : 15,000 colors
  • Stable color detection by calculating hue of each pixel
CVSE1-RA Series



CVSE1-RA Series

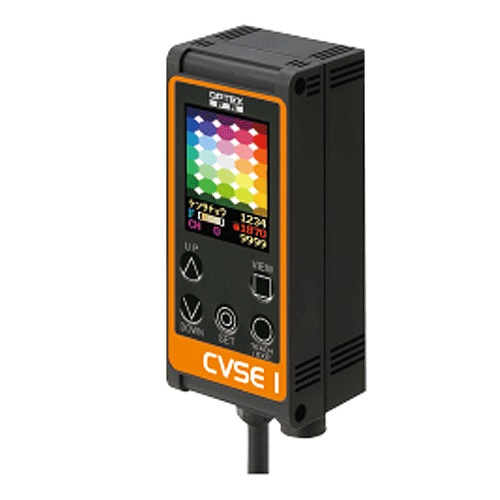

All in one

  • The sensor has a built-in Camera, LED Lighting, Display monitor and Controller. This structure enables water resistance IP67.

  • Three-Step-Teaching

    Teaching is easily done by three steps even in 30 seconds just like a color sensor.

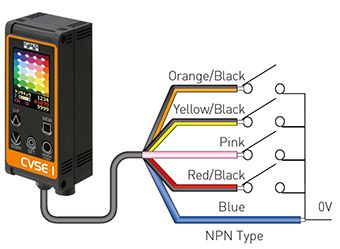

  • Quick change over

    16 Banks are available. You can
    remotely select the bank to use by
    PLC or other equipments.

    Color Resolution

    Up to 15,000 colors are available to detect.

    Stable inspection

    It calculates color hue of each pixel so stable inspection is available.

    Wide coverage line-up

    You can choose from 4 inspection range/field of view according to inspection target condition.

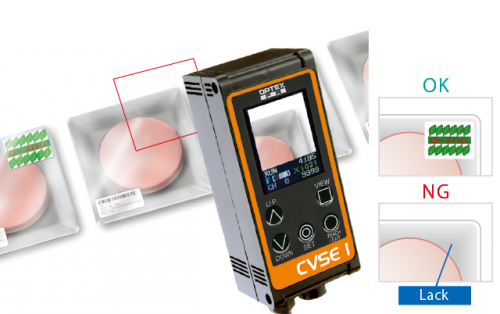

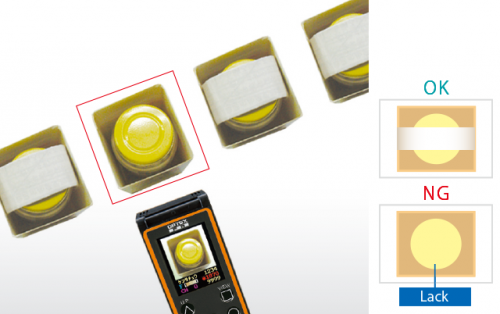

  • One threshold mode

    Determine OK when the area that the color matches exceeds the threshold.

  • Two threshold mode

    Determine OK when the area that the color matches is in two thresholds.

THÔNG SỐ CƠ BẢN
FOV 40 x 50mm to 55 x 65mm, 40 x 50mm to 65 x 75mm, 17 x 20mm (±10%), 50 x 65mm to 100 x 115mm
Model CVSE1-
Working distance 210 to 270mm, 90 to 150mm, 31 to 39mm, 50 to 100mm
Tín hiệu đầu ra NPN/PNP
Voltage 12-24 VDC ±10%
Thời gian phản hồi 2.9 to 27.7ms
