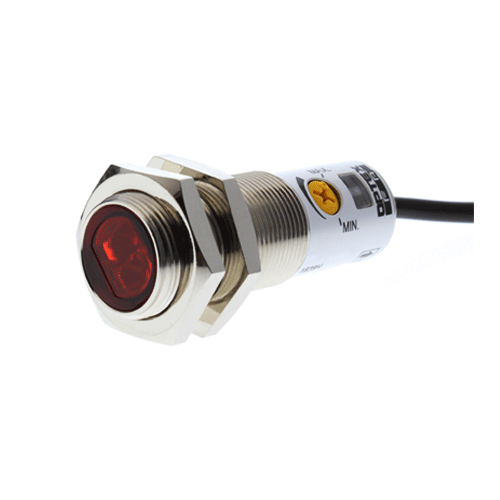

C-R Series- M18 Cylindrical Type

  • Thương hiệu: OPTEX-FA
  • Mã sản phẩm: OPTEX-PHOTOSENSOR
  • Tình trạng: Còn trong kho
Liên hệ
Giá sau Thuế: Liên hệ

Best-in-class robust and powerful

Best-in-class robust and powerful

  • <NEW>
    IR LED types added
  • Large sensing distance
  • Full-metal housing in brass
  • Easy to Align even the long distance

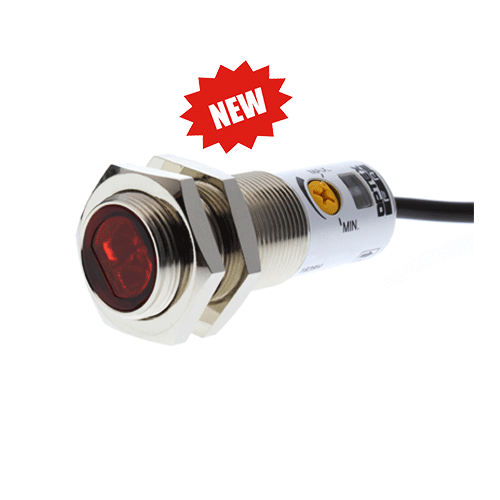

  • New C-R Series

    Cylindrical photoelectric sensor with long-distance detection, robustness, and excellent usability.

    The new C-R Series has much higher performance than conventional models, and is more easy-to-use.
    This is a new generation photoelectric sensor with the high detection performance, cost performance ratio, and robustness that are required of cylindrical sensors.

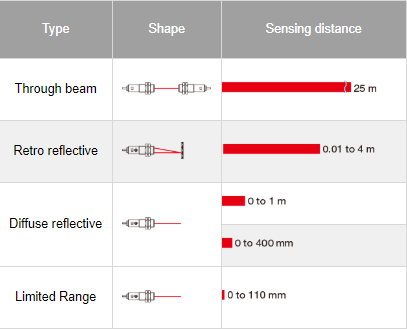

    Large Sensing Distance

    Achieved 25m detection distance, the longest for through beam types! Meets the need for long-distance application.

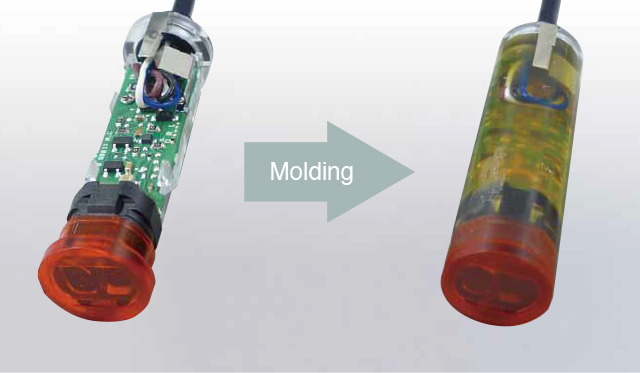

     Hotmelt molding

    • High vibration resistance

      Hotmelt molding enables high vibration resistance up to 100Hz, 8 hours. (For details, see Specification)

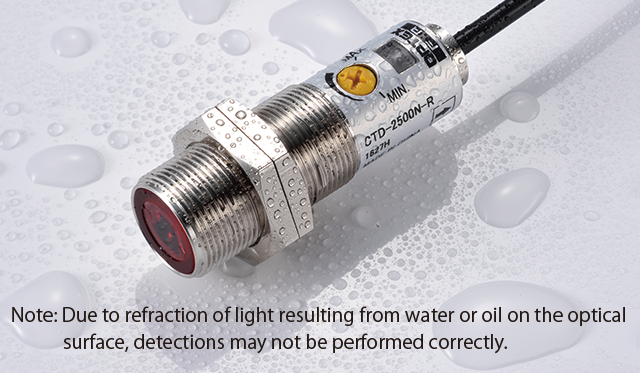

    • Watertight:IP67

      The C-R Series meets the conditions for the watertight IP67 rating.
      Can be used on work sites or devices that are exposed to splashing water such as the food and beverage industry.

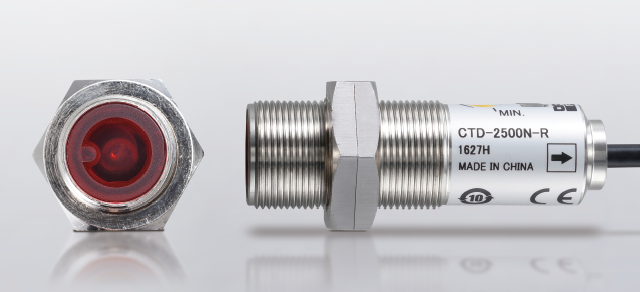

    Full-metal Housing in Brass

    • Robust design

      In the conventional model, the tip and the end of the housing were made of plastic.
      New C-R Series achieved the high robustness by full-metal housing.

    Easy to Align even the long distance

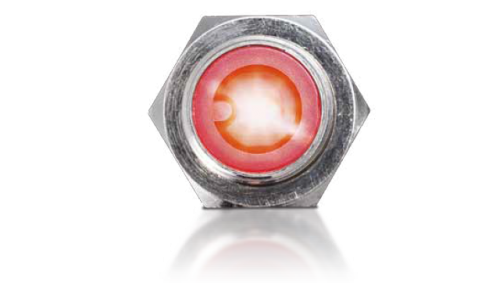

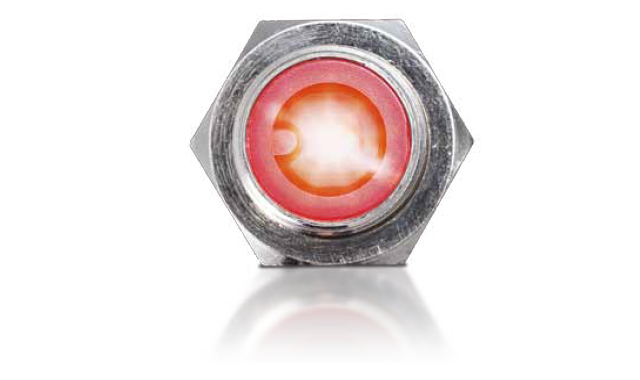

    • Visible red LED

      Red LED, which allows easy alignment, has been adopted for all models as the light source. The spot beam location is visible, reducing the time required for alignment.

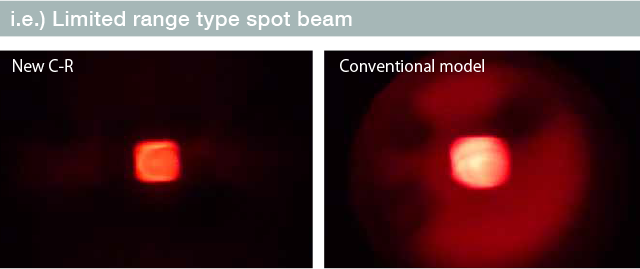

      In addition, spot beam flare is minimized, which improves the visibility when compared to conventional models.

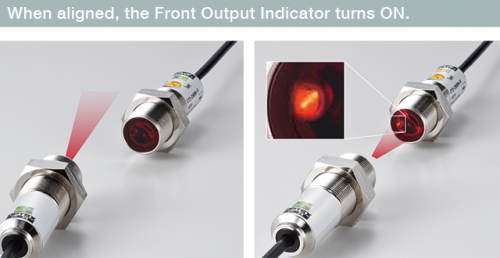

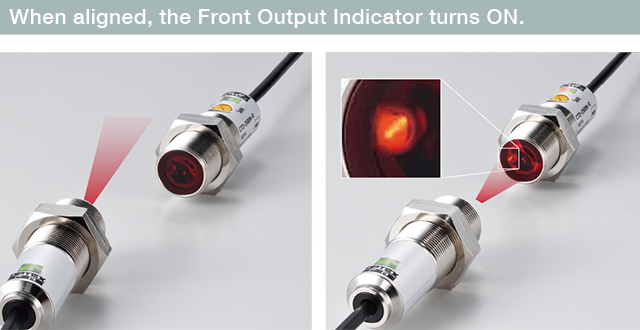

    • Front Output Indicator is equipped on the receiver (Through beam type)

      Output indicator is equipped not only on the side of the receiver, but also on the front. When panning the emitter for alignment, the ON/OFF state of the indicator is visible from the emitter side, so alignment can be performed more easily by a single operator.

Model C-R
Tín hiệu đầu ra NPN/PNP type Open collector Max. 100 mA/30 VDC
Voltage 10 to 30 VDC, including 10% ripple (p-p)
Spot size ø1600mm / 25m ø240mm / 4m ø70mm / 1m φ 30㎜ /400㎜ ø5mm / 110mm
Thời gian phản hồi 500μs max.
Khoảng cách phát hiện 25 m 0.01 to 4 m 0 to 1 m 0 to 400mm 0 to 110mm
