D Series - Long Range Type

  • Thương hiệu: OPTEX-FA
  • Mã sản phẩm: OPTEX-PHOTOSENSOR
  • Tình trạng: Còn trong kho
Liên hệ

Long range laser photoelectric sensor! 40m


Long range laser photoelectric sensor!

  • Sensing distance: 40 m (through-beam type)
  • Response time: 0.5 ms or less
  • Larger laser spot

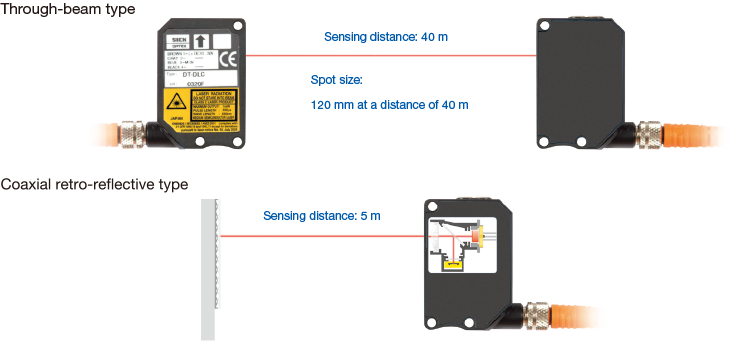

    • Achieves long distance, high-accuracy detection Sensing distance: 40 m (through-beam type)

      Features a sensing distance of 40 m, one of the longest for small photoelectric sensors. Employs red lasers (Class 2) as the light source to enable highly precise positioning detection.

    •
    • Easy adjustment of light axis

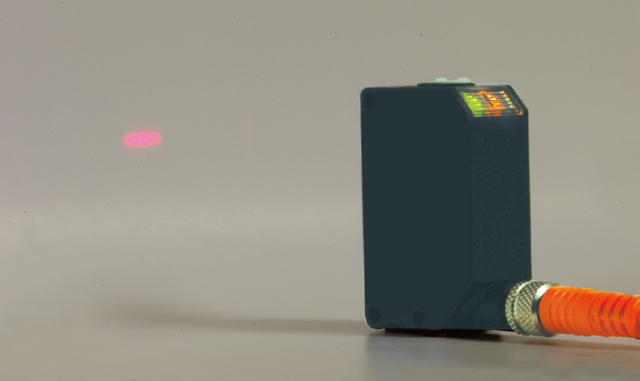

      ◎ Larger laser spot

      Features a larger laser spot for easier light axis adjustments. Because the spot light can be confirmed visually, detection position adjustments can be performed quickly.

    • For high-speed lines
      ◎ Response time: 0.5 ms

      Features one of the top response times for laser photoelectric sensors in the industry. This feature makes detection in high speed production line possible.

THÔNG SỐ CƠ BẢN
Model D
Tín hiệu đầu ra NPN/PNP type Open collector Max. 100 mA/30 VDC
Voltage 10 to 30 VDC, including 10% ripple (p-p)
Spot size Approx. ø15 mm / at a distance of 5 m Approx. ø20 mm / at a distance of 3.5 m
Thời gian phản hồi 0.5 ms
Khoảng cách phát hiện 40 m 0 to 5 m (when reflector P250F is used)
