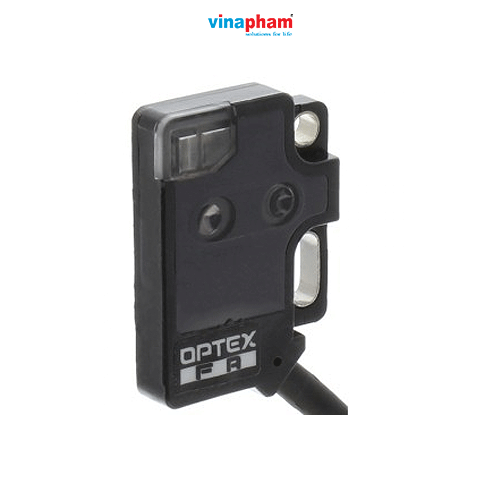

E Series - Miniature Type

  • Thương hiệu: OPTEX-FA
  • Mã sản phẩm: OPTEX-PHOTOSENSOR
  • Tình trạng: Còn trong kho
Liên hệ

Sensor dạng dẹt, Both Flat ON and Side ON types


Self-contained, miniature, side & front-sensing photoelectric sensor.

  • SPACE SAVING SIZE: Front sensing version is only 3.5mm thick - Perfect for applications with space constraints
  • LONG SENSING RANGE: Diffuse model has up to 100mm distance
  • VARIETY OF FLEXIBLE INSTALLATIONS: Thrubeam, diffuse, and convergent super side sensing versions available
  • CONNECTIONS: Available with M8 3 pin quick disconnect, standard. Easy maintenance.
  • EASILY VISIBLE: Operation indicator visible on the front and back of the sensor for quick output status confirmation
  • TOUGH MECHANICS: 100G shock rating - IP67 water tightness

Can be mounted anywhere

Both Flat ON and Side ON types are available

When there is limited space in width, choose Side ON type. When height is limited, choose Flat ON type. Selections can be made based on the situation.

Ultra-thin type

Thickness of only 3.5 mm (Flat ON type)

  • You can install this series into very narrow space.
    *Thickness of Side ON type is 5 mm.

Angled cable design

prevents cable stress

  • The cable is angled coming out from the corner of the housing enabling it to be mounted in various positions without stress on the cable.

  • Flexible mounting hole:

    Mounting hole pitch: 8 to 11 mm

    Flexible mounting is possible using holes whose pitch was altered during machining or holes that were already made.

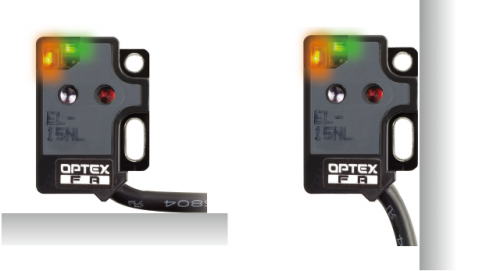

  • Indicators visible even from back of the housing

    (Flat ON type)

    Equipped with a stability indicator (green) and output indicator (orange) to enable visibility from front and rear of sensors. When making light axis adjustments, indicators can be confirmed without being turned to the front every time.

THÔNG SỐ CƠ BẢN
Model E
Tín hiệu đầu ra NPN/PNP
Voltage 12 to 24 VDC ±10%, including 10% ripple (p-p)
Spot size Approx. ø140 mm At distance of 500 mm Approx. ø60 mm At distance of 100 mm Approx. ø20 mm At distance of 30 mm Approx. ø10 mm At distance of 15 m Approx. ø10 mm At distance of 10 mm
Thời gian phản hồi 0.5 ms or less
Khoảng cách phát hiện 500 mm 100 mm* 5 to 30 mm* 2 to 15 mm* 3 to 8 mm*
