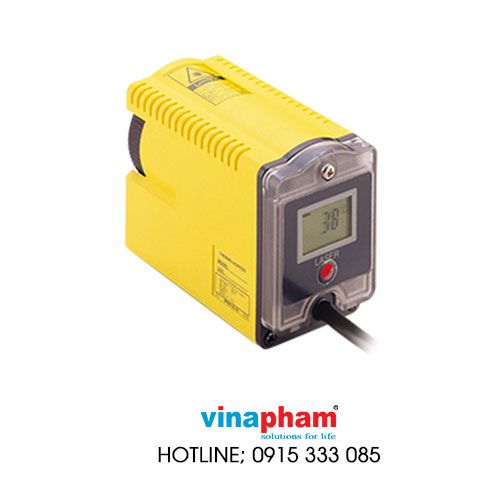

Thiết bị đo bằng tia hồng ngoại All-In-One with Analog Output Type BA Series

Benefits of temperature-based detection

• Immune to the influence of colors of measured objects

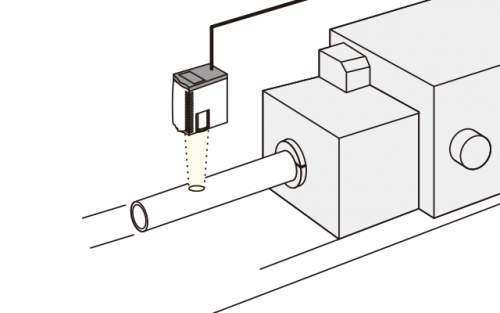

• Measurement possible even if the target is vibrating

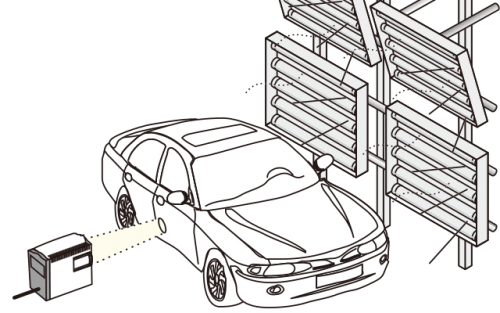

• Long-distance detection (30 mm diameter at a distance of 1000 mm)
• Detection even in severe environments

Compact body with integrated sensor and amplifier

Compact design with the integrate sensor and amplifier. This allows for restrictionfree installation. This all-in-one type allows for measurement, output, display, and configuration.

First-in-class integrated digital display type

The BA series is the first thermometer in its class with integrated digital display.
This product allows various functions to be configured on-site, and includes a display that makes checking temperatures easy. Changing settings can even be performed by a single person even while the line is running.

Spot measurements from a distance

The BA series of thermometers includes a long-range spot measurement type (BA-30 model) and a narrow-field measurement type (BA-06 model) to suit various measurement target size and measurement distance needs. Moreover, the coaxial laser marker enables accurate measurement of small targets at a distance.

Simple emissivity adjustment: Teaching function

This product is equipped with a TEACH function that allows users to calculate and store emissivity automatically by inputting a temperature.
This allows for drastic reductions in time spent on configuring settings.

Built-in coaxial laser marker

The product includes a coaxial laser marker that points directly to the center of the field of view.
This allows for more accurate positioning and easier installation.
・The laser marker turns off automatically after about 20 seconds.

Two types of analog output

The lineup includes a voltage output type that can be easily connected to a panel meter, and a current output type that is ideal for long-range transmissions. Users are able to select the desired type when selecting a model.

・BA-30TA-S / BA-06TA-S, BA-30TV-S / BA-06TV-S only

Built-in analog scaling function

Users are able to set the temperature range of the analog output as desired.

(4 to 20 mA analog type only)

Photo MOS relay output

The photo MOS relay output function makes configuration of upper and lower limit settings possible.

*BA-30TC / BA-06TC only
