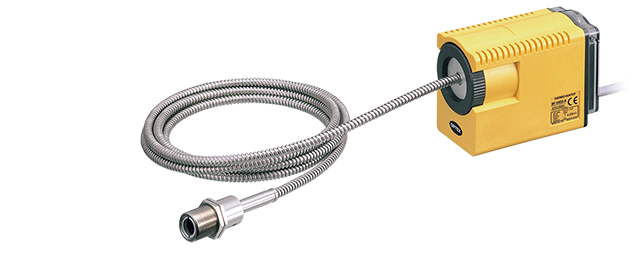

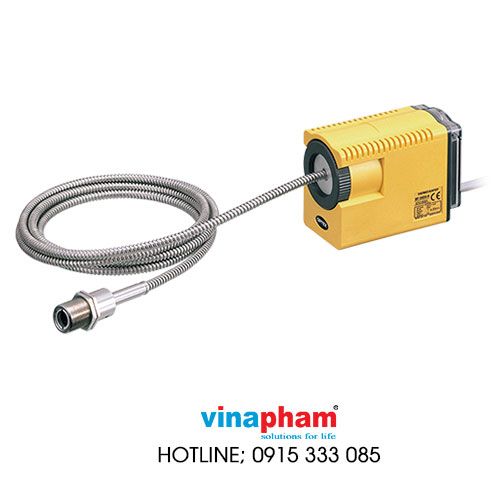

Thiết bị đo bằng tia hồng ngoại Fiber-Type Thermometer BF Series

  • Thương hiệu: OPTEX-FA
  • Mã sản phẩm: OPTEX-THERMOMETERS
  • Tình trạng: Còn trong kho
Liên hệ

High frequency equipment for fiber type Wide measurement range


High frequency equipment for fiber type

  • Wide measurement range
  • Simple emissivity adjustment: Teaching function
  • 50 ms high-speed response
BF Series



Scaling

  • The temperature range of the analog output (4 to 20 mA) can be set as desired.
    This makes post-processing with recorders and the like easy.

  • Heat-resistant up to 150°C (302°F) (fiber tip)

    • The fiber tip features a heat-resistant design capable of withstanding ambient temperatures up to 150°C (302°F).
      This means no cooling device is required.

  • Wide measurement range

    This product is suitable for a wide variety of applications thanks to its wide 400 to 1200°C (752 to 2192°F) measurement range.

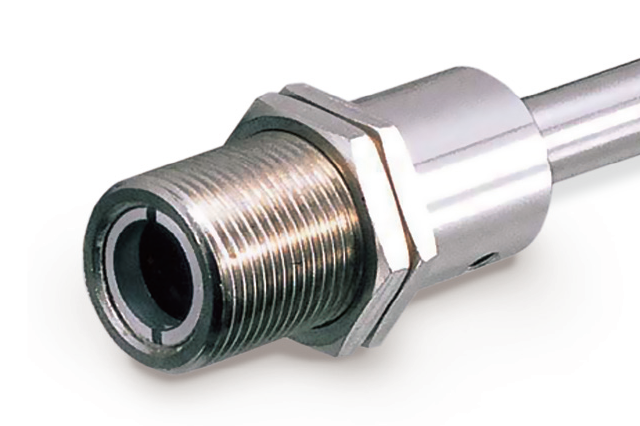

  • Space-saving glass-fiber model

    The fiber tip (lens attachment) features an M16 compact design. Moreover, the adoption of glass fiber provides better resistance to breakage.
    This design is ideal for incorporation in machines and other equipment.

  • Simple emissivity adjustment: Teaching function

    This product is equipped with a TEACH function that allows users to calculate and store emissivity automatically by inputting a temperature.
    This allows for drastic reductions in time spent on configuring settings.

  • 50 ms high-speed response

    The product’s high-speed response capabilities make it possible to track measurement targets moving relatively fast.

SPECIFICATIONS
Model BF SERIES
Vùng đo nhiệt độ 400 to 1200°C (752 to 2192°F)
Xuất xứ JAPAN
THÔNG SỐ CƠ BẢN
FOV ø30 mm/1000 mm (with standard lens attached)
Độ chính xác lặp lại ±1°C (1.8°F)
Thời gian phản hồi 50 ms/90% response
