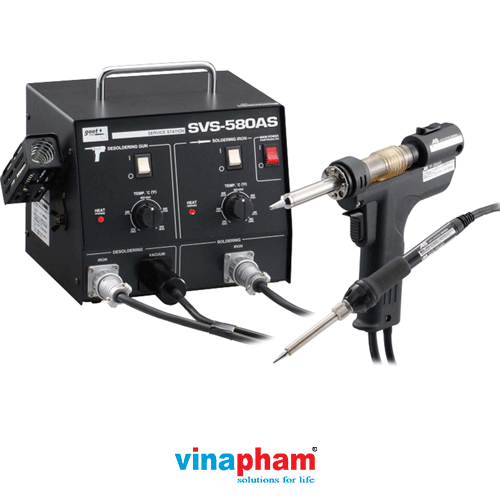

Trạm hàn đa năng tích hợp máy hàn, máy hút thiếc GOOT SVS-580AS

  • Thương hiệu: GOOT
  • Mã sản phẩm: GOOT-AUTOMATIC SOLDER
  • Tình trạng: 2-3 Ngày
Liên hệ

Desoldering in an instant, with reduced solder residue! Combines desoldering gun and temperature-controlled soldering iron in one unit.


OPEN-VALVE MECHANISM

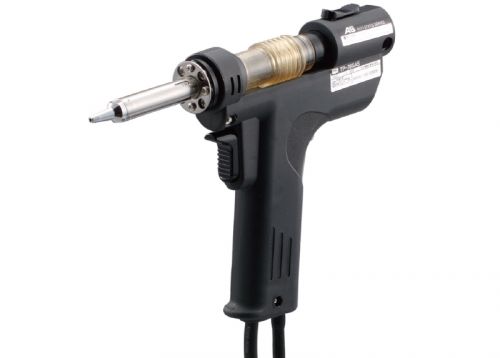

Two-stage trigger switch (PAT.P)

Step 1

Pulling the trigger (lightly) activates the first stage switch. The pump starts, and the air pressure decreases in the vacuum chamber.

Step 2

Next, pulling the trigger fully activates the second stage. The open-valve will open, and the solder is sucked up at once by the negative pressure in the vacuum chamber.




400% More Suction Capacity

With open-valve mechanism



Ceramic Heater with Internal Sensor

A wide range for terminals, connectors and flat ICs



Superior Temperature-Control Circuit

To keep the temperature constant during desoldering



Zero Volt Switch Circuit

Reduces noise during heater ON/OFF



Replaceable Cartridge Filter

Makes changing the filter easy



TIP/NOZZLE TEMPERATURE-RECOVERY FEATURES

Desoldering/Soldering time is approx. 2 seconds / 5×5mm land (with PX-2RT-B tip, TP-100N-10 nozzle)




Vacuum pressure compared with other goot models

The open-valve allows the device to reach vacuum pressure of -0.06MP (approx.-450mmHg) in only 0.1second. (about 4 times faster than our SVS-500AS).




SUCTION CAPACITY COMPARISON

The arrow indicates solder residue.




Soldering Iron Unit SVS-800AS, SVS-580AS, SVS-500AS

Soldering Iron Unit SVS-800AS, SVS-580AS, SVS-500AS

SPECIFICATIONS
Công suất 110V,120-130V (200W), 220-240V (270-300W)
Voltage 110V,120-130V,220-240V AC 50/60Hz
Nhiệt độ cài đặt Deoldering Unit 250−450˚C, Soldering Unit 200−480˚C

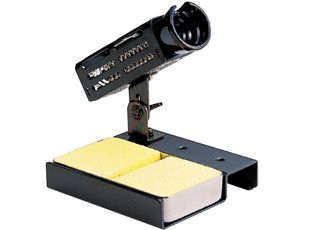

Accessories Cleaning pin TP-100CP-13, Soldering iron stand ST-76
