Trạm hàn đa năng tích hợp máy hàn, máy hút thiếc GOOT SVS-800AS

  • Thương hiệu: GOOT
  • Mã sản phẩm: GOOT-AUTOMATIC SOLDER
  • Tình trạng: 2-3 Ngày
Liên hệ

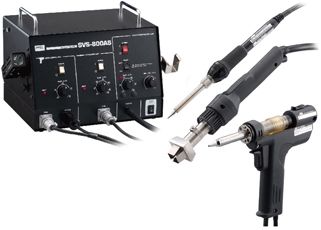

Omnifunctional machine for soldering, desoldering and reworking.

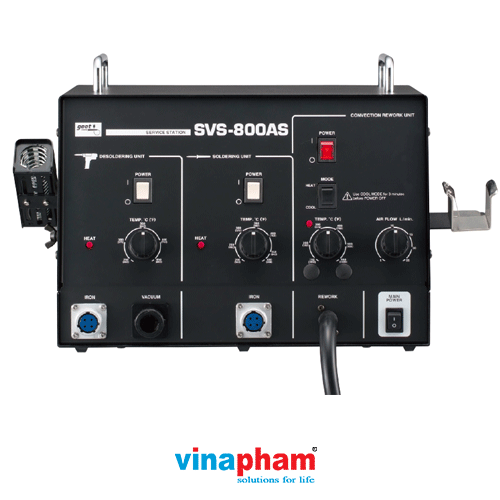

SERVICE STATION

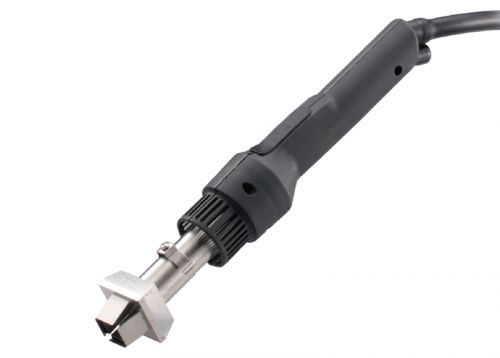

REWORK UNIT

The temperature can be set to max 550°C.

SOLDERING UNIT

Good for a wide range of soldering work with 70W heater.

DESOLDERING UNIT

Instant desoldering with open-valve mechanism.(Please refer to the next page.)

INDIVIDUAL POWER SWITCHES

Along with the main power switch, there are switches for soldering, desoldering, and reworking.




Independent Pumps

Desoldering and reworking operate simultaneously



400% More Suction Capacity

With open-valve mechanism



Ceramic Heater with Internal Sensor

A wide range for terminals, connectors and flat ICs (soldering & desoldering)



Superior Temperature-Control Circuit

To keep the temperature constant during desoldering



Zero Volt Switch Circuit

Reduces noise during heater ON/OFF



OPEN-VALVE MECHANISM

Two-stage trigger switch (PAT.P)

Step 1

Pulling the trigger (lightly) activates the first stage switch. The pump starts, and the air pressure decreases in the vacuum chamber.

Step 2

Next, pulling the trigger fully activates the second stage. The open-valve will open, and the solder is sucked up at once by the negative pressure in the vacuum chamber.




Replaceable Cartridge Filter

Makes changing the filter easy



TIP/NOZZLE TEMPERATURE-RECOVERY FEATURES

Desoldering/Soldering time is approx. 2 seconds / 5×5mm land (with PX-2RT-B tip, TP-100N-10 nozzle)




Vacuum pressure compared with other goot models

The open-valve allows the device to reach vacuum pressure of -0.06MP (approx.-450mmHg) in only 0.1second. (about 4 times faster than our SVS-500AS).



SUCTION CAPACITY COMPARISON

The arrow indicates solder residue.




Soldering Iron Unit SVS-800AS, SVS-580AS, SVS-500AS

Soldering Iron Unit SVS-800AS, SVS-580AS, SVS-500ASs

SPECIFICATIONS
Công suất 670-760W
Voltage 220-240V AC 50/60Hz
Nhiệt độ cài đặt Desoldering Unit 250−450°C, Soldering Unit 200−480°C Rework 150-550℃
Accessories Cleaning pin TP-100CP-13 / Soldering iron stand ST-76
