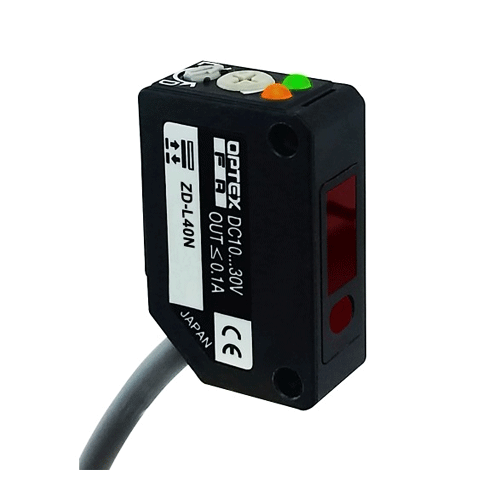

Z-L Series - Amplifier Built-in Type

  • Thương hiệu: OPTEX-FA
  • Mã sản phẩm: OPTEX-PHOTOSENSOR
  • Tình trạng: Còn trong kho
Liên hệ

IIndustry standard sized laser sensors with built-in amplifiers

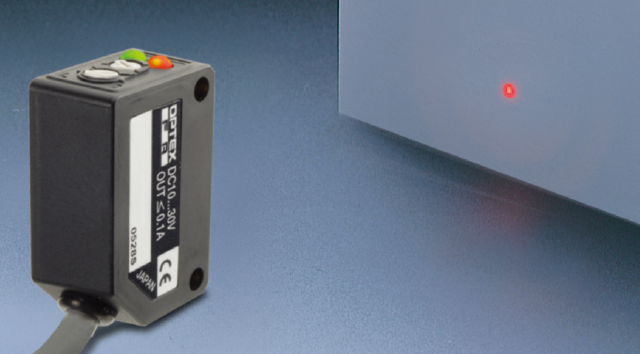

Small spot size that can be achieved by lasers

  • Approx. ø2 mm spot size at a distance of 400mm (diffuse-reflective type)

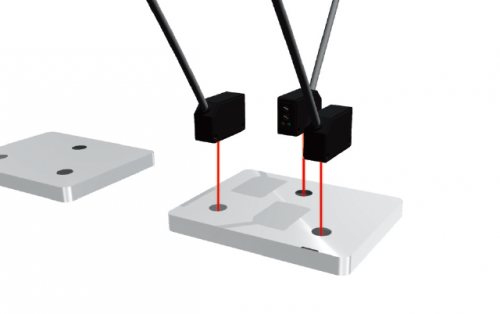

    Optimal for applications that in which small object detection and high repeat accuracy are required.

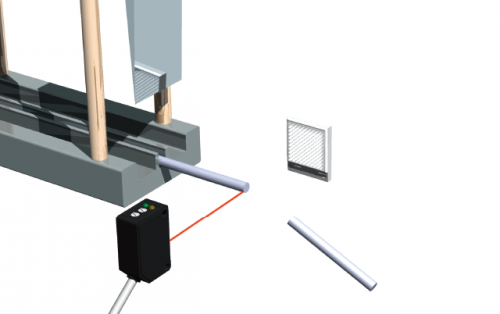

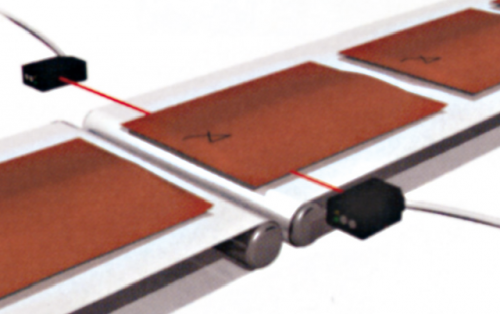

For high-speed lines

  • Response time: 250 μs

    The laser sensor provides a top class response time.
    This feature makes detection in high speed production line possible.

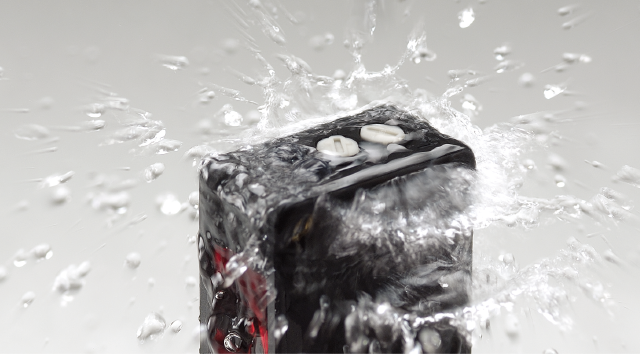

Outstanding environmental resistance

  • Degree of protection: IP67, Shock resistance: 50 G

    Its integrally molded structure enables all models to conform to IP67 and achieve a shock resistance up to 50 G. It doesn’t break even when wet and can be used in locations where vibrations are generated.

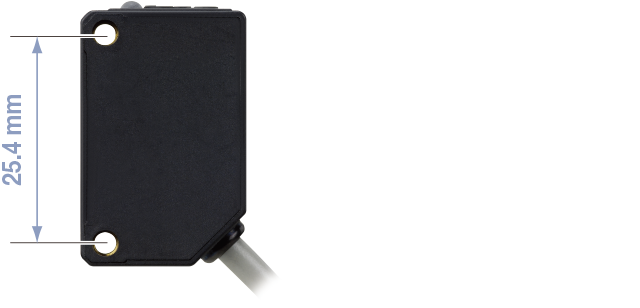

  • Standard specification size

    25.4 mm standard pitch

    Features an industry standard pitch of 25.4 mm.

THÔNG SỐ CƠ BẢN
Model Y
Tín hiệu đầu ra NPN/PNP type Open collector Max. 100 mA/30 VDC
Voltage 10 to 30 VDC, including 10% ripple (p-p)
Spot size Approx. ø2 mm*4 Distance: 2 m (at ordinal temperatures) Approx. ø2.5 mm*4 Distance: 2 m (at ordinal temperatures) Approx. ø2 mm*4 Distance: 400 mm (at ordinal temperatures)
Thời gian phản hồi 250 μs or less

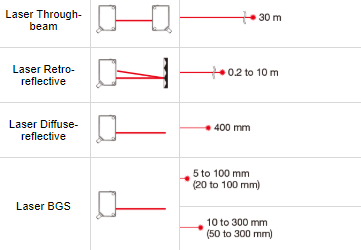

Khoảng cách phát hiện 30 m 0.2 to 10 m*1 400 mm*2
