Type test |
|
Clean-room |
Fluid Admitted |
Air, Water (Conditional) |
Air |
Remarks |
For water: Surge pressure must be lower than max service pressure and use of insert ring |
Class 10000 or Class 1000 for down stream use |
Service Pressure Range at 20ºC |
0~150 psi (0~1MPa) |
0~150 psi (0~1MPa) |
Service Temperature Range |
32~140ºF (0~60ºC) |
32~140ºF (0~60ºC) |
Working Vacuum |
-29.5in.Hg (-100kPa) |
-29.5in.Hg (-100kPa) |
Push-In Fitting Type for Pneumatic Piping
Tube Fitting Standard Series
●Push-in fitting for General Pneumatic Piping.
●Redesigned 17 models, realized weight saving.

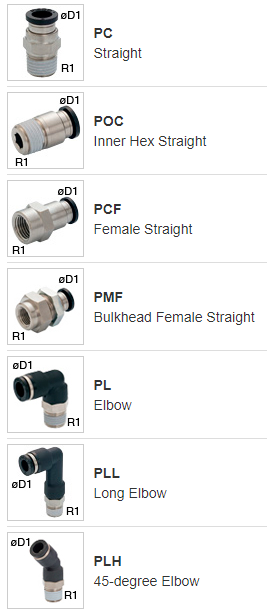

(PC,PCF,POC,PM,PMF,PL,PLL,PLH,PLF,PVX,PAX,PB,PD,PX,PRX,PKD,PKVD)
●Rotatable Resin Body after Installation.

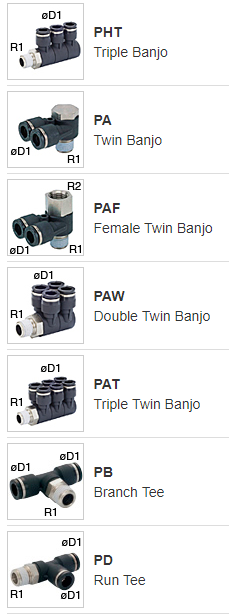

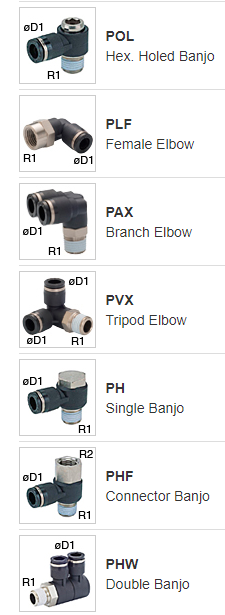

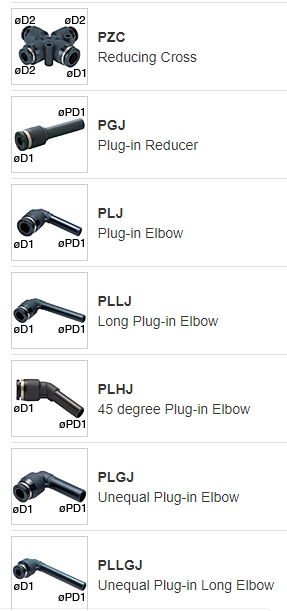

●Wide Variety of Products.

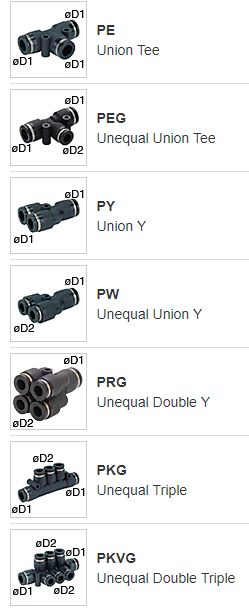

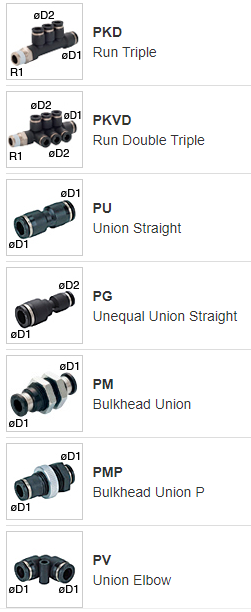

●Centralized Piping.Tripletype(PKD,PKG,PKJ)andtwin
tripletype(PKVD,PKVG)arecompact
designedtoachievecentralizedpiping.
●Optional Selection of Clean-Room Package
and Clean-wash Package.
