LS 2D Profile Measurement Sensor Series

  • Thương hiệu: OPTEX-FA
  • Mã sản phẩm: OPTEX-DISPLACEMENT
  • Tình trạng: Còn trong kho
Liên hệ

Sensor đo dải khoảng cách độ chính xác Linearity of ±0.1% F.S.


LS Series

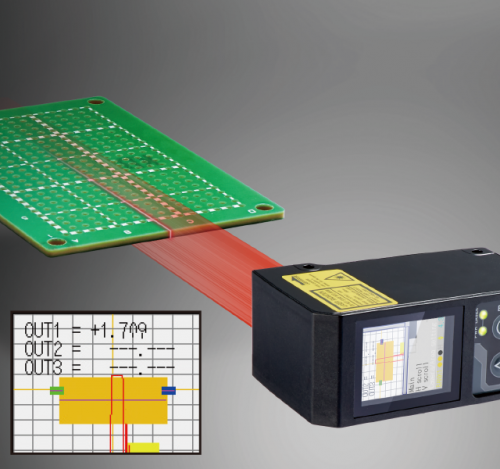

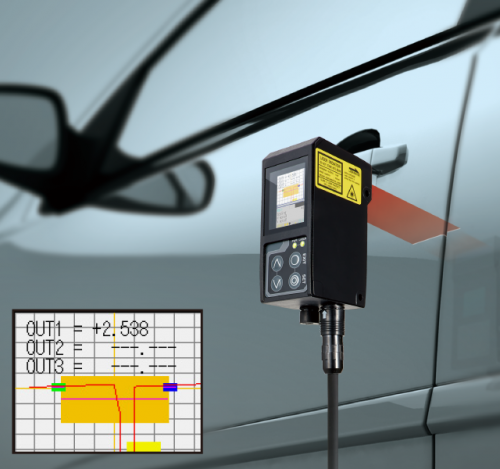

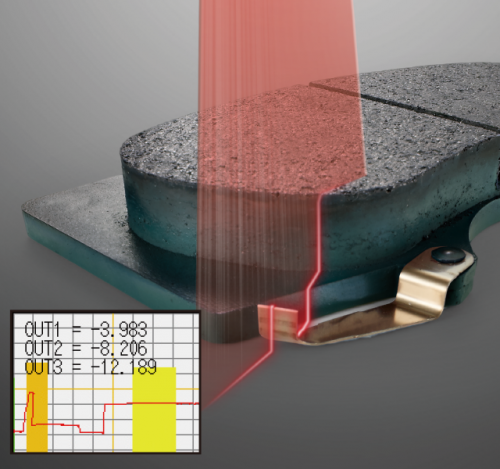

Line beam provides high-speed, high-precision measurement of height and width

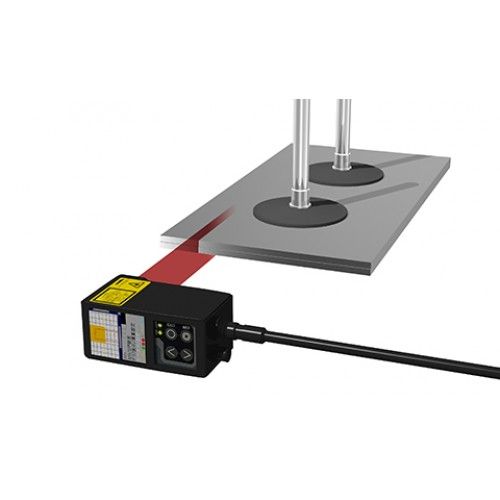

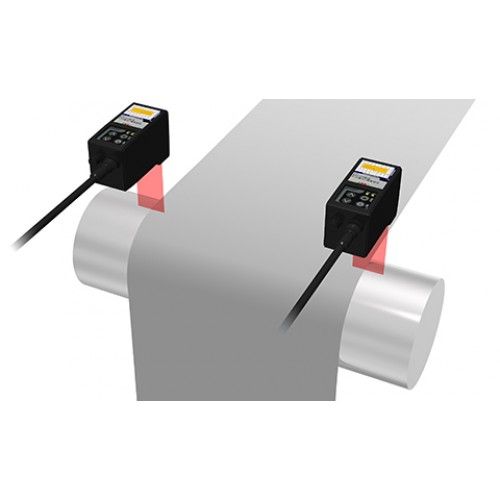

These sensors can be used on any manufacturing line to perform the shape measurements required for quality management of parts and materials. With the FASTUS LS series, high-accuracy 2D measurement sensor achieved both super cost effectiveness and significantly high speed measurement that conventional 1D measurement sensors can't achieve.
These are next generation 2D displacement sensors that have created a whole new category in part measurement.

  • High speed, compact size and low price are achieved using Optex-FA original method

    Employing a mathematical operation known as a projection transformation, which converts a captured image into distance, allows both height and width to be measured with a high degree of precision. Also, by employing Optex-FA original method in which projection transformations, normally performed on all pixels in the case of competitors’ products, are performed after triangulation, processing levels are significantly compressed, allowing high speed to be achieved. Furthermore, a more compact and low cost product has been realized by making processors smaller size.

  • Easy Setup

    The LS Series can be configured in four easy steps: imaging, profile, area measurement,amd calculation, and result judgment and output

THÔNG SỐ CƠ BẢN
Model LS
Độ chính xác lặp lại 2 μm
Tín hiệu đầu ra NPN/PNP type Open collector Max. 100 mA/30 VDC, Analog output
Voltage 12-24 VDC ±10%
Spot size Approx. 0.3 × 32 mm
Khoảng cách phát hiện 100 ±25 mm
