CVS2-RA Series - Pattern Matching and Color Inspection Sensor

  • Thương hiệu: OPTEX-FA
  • Mã sản phẩm: OPTEX-VISION
  • Tình trạng: Còn trong kho
Liên hệ

Color and Shape Inspection at One Time for Various Application All in one color vision sensor For Pattern matching and Color inspection Better sensitivity by Masking function


Color and Shape Inspection at One Time for Various Application

  • All in one color vision sensor
  • For Pattern matching and Color inspection

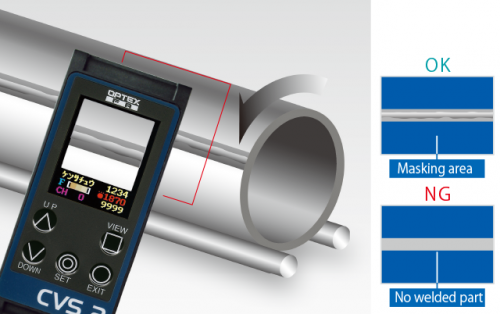

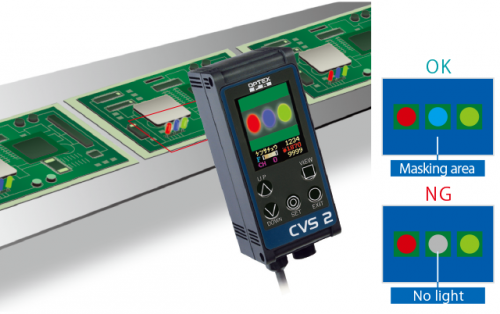

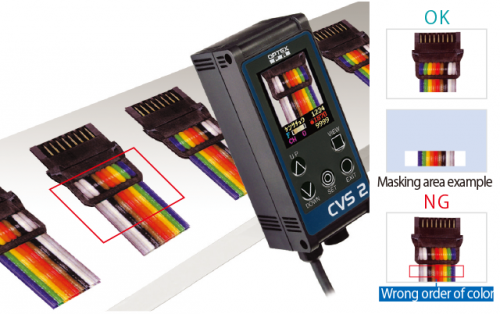

  • Better sensitivity by Masking function
CVS2-RA Series



Pattern matching mode and Color inspection mode are available

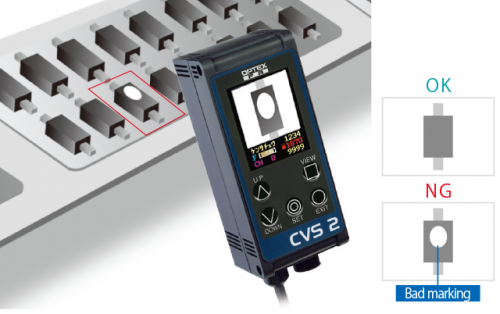

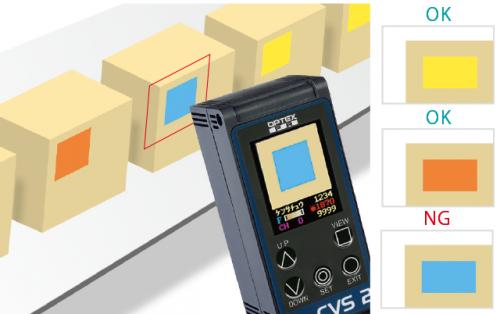

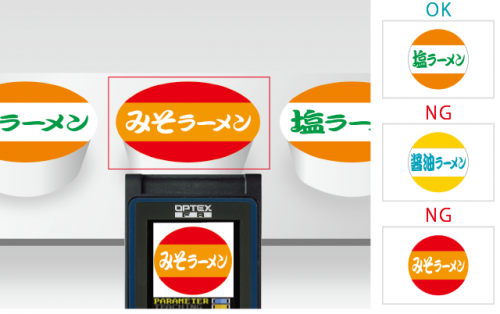

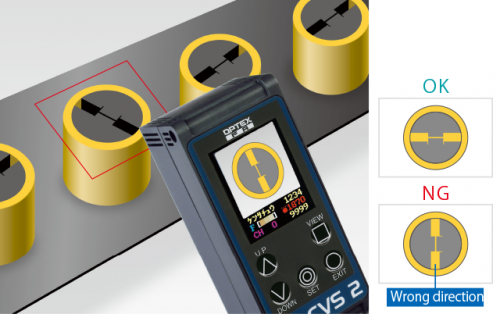

Inspection of shape and direction of the object is available by pattern matching mode. You can use CVS2-RA as simple Color inspection sensor as well. Sorting by color is also available.

All in one

The sensor has a built-in Camera, LED Lighting, Display monitor and Controller. This structure enables water resistance IP67.

  • Correct background brightness

    CVS2-RA has a function that corrects evenness of background brightness. You register just the background for reference.

  • Wide coverage line-up

    You can choose from 4 inspection range/field of view according to inspection target condition.

  • Up to 15 Bank

    15 Banks are available in small all in one package.

Downloading setup parameters to PC

  • You can download setup data and image data into PC. You can use the image data on PC and can copy setup to other CVS2-RA. Please use I/F cable CVS-C2C.

Zoom function

  • CVS2-RA has Zoom function so you can zoom in up to twice size.

Setup Adjustable while line is running

CVS2-R provides output with the setup parameters given even while you are adjusting setup. You don't have to stop the line.

  • CVS2-RA has two processing unit individually so it can change parameters while vision processing is running without delay.

Correct background brightness

  • CVS2-RA has a function that corrects evenness of background brightness. You register just the background for reference.

THÔNG SỐ CƠ BẢN
FOV 40 x 50mm to 55 x 65mm, 40 x 50mm to 65 x 75mm, 17 x 20mm (±10%), 50 x 65mm to 100 x 115mm
Model CVS2-
Working distance 210 to 270mm, 90 to 150mm, 31 to 39mm, 50 to 100mm

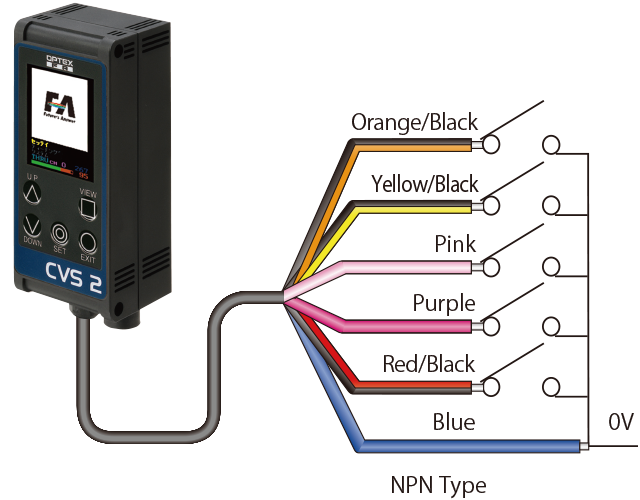

Tín hiệu đầu ra NPN/PNP
Voltage 12-24 VDC ±10%
Thời gian phản hồi Pattern matching mode 9.2/15.2/21.2/27.3ms, CVS1 compatible mode 8.7/14.8/20.8/26.8ms
