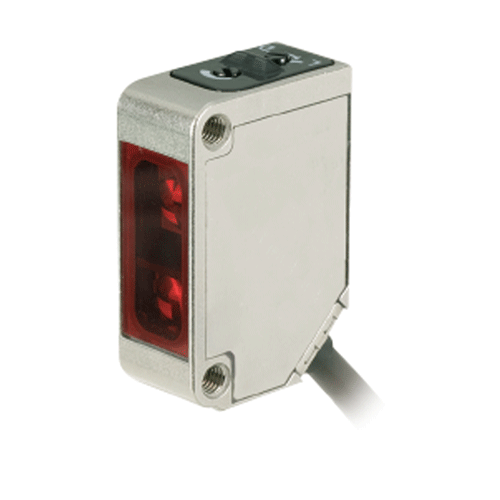

ZM-IP69K Wash-Down Sensor Series

  • Thương hiệu: OPTEX-FA
  • Mã sản phẩm: OPTEX-PHOTOSENSOR
  • Tình trạng: Còn trong kho
Liên hệ
Giá sau Thuế: Liên hệ

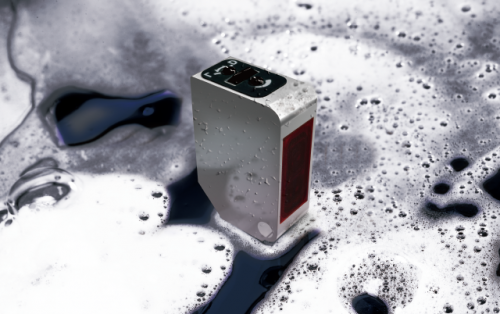

Vỏ cảm biến bọc bằng thép không gỉ IP69K, chịu được áp suất cao, chống ăn mòn

Tough against oil and coolant! Cost effective sensor with excellent oil resistance

Employs a newly developed high-brightness 4 element LED

Longest sensing distance in the class!

Equipped with a newly developed 4 element red LED light source. In addition to minimizing the decreases in emitted light that occur over time, it features a through-beam type sensor with a longest-in-class 30 m sensing distance! Not only is detection over long distances possible, but it is also tolerant against dust and fine particles.

▪High brightness 4 element red LED

Degree of protection of cable type is IP69K

Achieved a degree of protection on IP66 that is tough against humidity, water, steam cleaning, etc. Sensor features a tough design that doesn’t break even when exposed to high-pressure washing on food processing machinery or when used in severe environments. Of course, it has also cleared IP67.

  • What is IP69K?

    IP69K is a protection rating stipulated by German standard DIN40050 Part 9.

    Test details:

    Sensors are placed on a turntable and rotated 5 times per minute while being sprayed with water under the following conditions.

    Water pressure: 80 to 100 bar
    Flow rate: 14 to 16 l/m
    Water temperature: +80℃ / -5℃
    Distance from spray nozzle: 100 to 150 mm
    Spray angle: 0°, 30°, 60°, 90°
    Spray time: 30 seconds at each angle

    * IP69k does not guarantee operation under the above conditions. Water or oil that adhere to the optical surface could cause light to refract and prevent detection from being performed correctly.
    *Excluding connector type and refl ector.

Model ZM
Tín hiệu đầu ra NPN/PNP
Cable Cable/ M8 connector type
Spot size Thu phát độc lập: 1200mm, Thu phát chung: 40mm, Phản xạ gương: 300m, BGS sensor: 19mm
Thời gian phản hồi 500 μs or less
Khoảng cách phát hiện Thu phát độc lập: 30m, Thu phát chung: 0 - 800mm, Phản xạ gương: 0.01 - 5.5m, BGS sensor: 10 - 300mm
